F1 Firearms: Rifles, Receiver Sets, Handguards and Parts Guide
F-1 Firearms builds some of the most recognisable AR-pattern rifles and parts on the market: deeply skeletonized billet receivers, hand-matched receiver sets, lightweight handguards with a built-in grip, and bolt carrier groups coated in-house. This page is a plain guide to the range, written by a retailer that sells it. We are an independent online store and not the manufacturer, so you will find straight descriptions here rather than a brochure.
Jump straight to a product line: rifles and pistols, receiver sets, handguards, bolt carrier groups, barrels, muzzle devices and parts and accessories.
The receiver families: BDR, UDR and FDR
BDR-15-3G. The billet matched receiver set that made the brand's name. The maker describes it as a modern take on the mil-spec pattern, engineered to be as light as possible while staying rigid, with every area that is not needed for function machined away. Each set is hand finished and matched in-house. A BDR-10 version covers the larger .308 pattern, and the BDRx-15 and BDRx-10 are the fully skeletonized complete rifles built on these receivers.

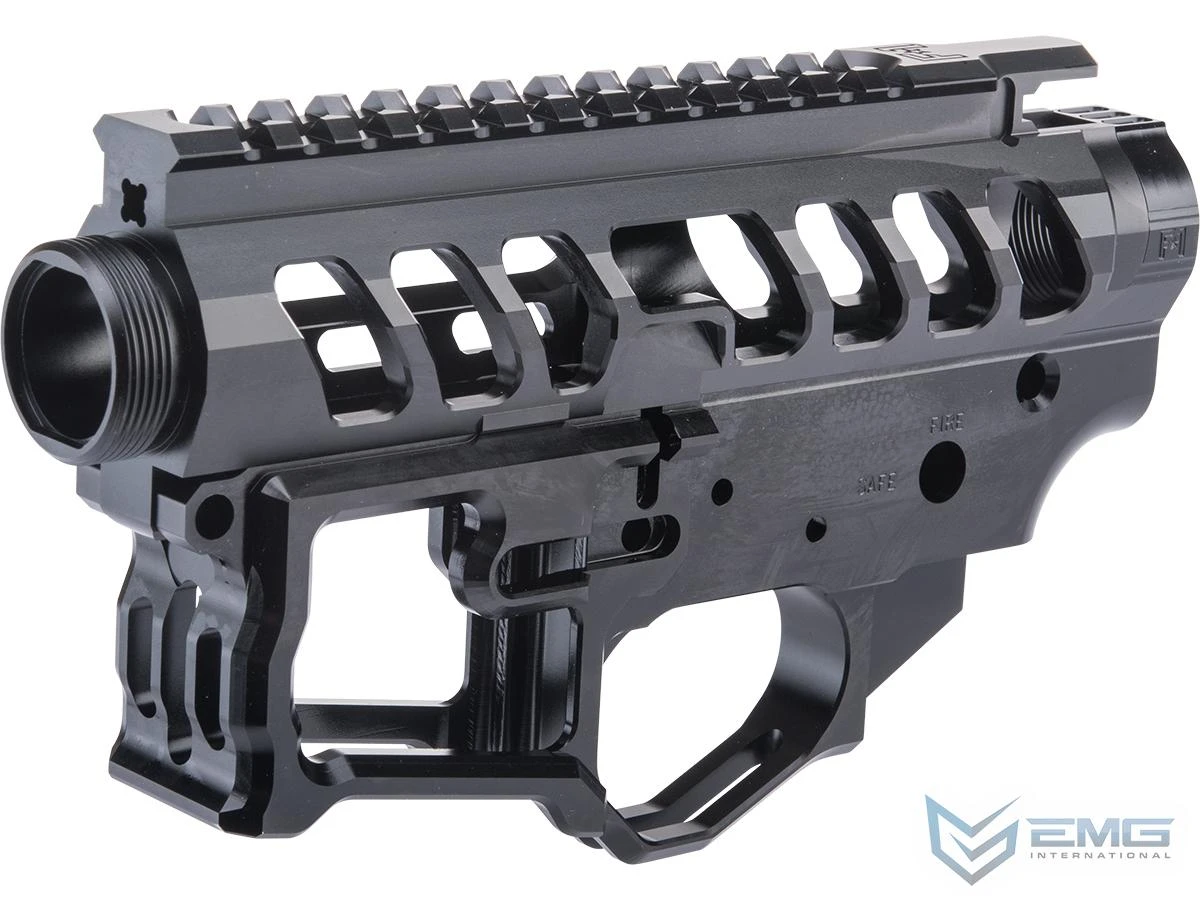

UDR-15-3G. The "universal" receiver line, machined from 7075-T6 billet aluminum with the 3G skeletonizing. It comes in Style 1 and Style 2, as individual upper and lower receivers, as matched sets, as complete uppers and as complete rifles and pistols. F-1 also makes left-handed "Lefty" UDR uppers, receiver sets and complete rifles, which is unusual in this market.
FDR-15. The forged line. The maker positions the FDR-15 as a mil-spec base rifle with tighter tolerances, an F-1 7075-T6 handguard and a match-grade barrel as standard, and it is the most affordable way into the brand. Skeletonized FDR-15 matched receiver sets are offered with billet-style features.
UDP-9. A skeletonized 9mm AR pistol for shooters who want the F-1 look in a pistol-caliber platform.
Receivers and complete firearms are serialized items. They ship to the Federal Firearms Licensee you choose, and you complete the transfer there. Our FFL transfer guide explains the steps.
Handguards: what the letters mean
F-1 handguards share a naming pattern: a letter for the profile, then 7M for the M-LOK series. They are made for the AR-15, and several are also offered for the AR-10.
- C7M, contoured. The maker calls this patented one-piece design one of its most popular. It has a built-in grip, a full-length 1913 Picatinny rail on top, M-LOK slots at 3, 6 and 9 o'clock, and a 1.65 inch inner diameter, large enough to house a suppressor inside the handguard.
- X7M, contoured. Offered for both AR-15 and AR-10, with LE variants.
- S7M Super Lite, P7M Hyper Lite and H7M Ultra Lite. The weight-saving profiles, for builds where every ounce counts.
- M7M Miculek and XS7M. Further profiles in the same family.
The S7M, M7M and H7M series use their own barrel nut, and F-1 sells the matching barrel nut and wrench. Check the barrel nut requirement before ordering a handguard for an existing upper.
DuraBolt bolt carrier groups
The DuraBolt is F-1's bolt carrier group, offered in 5.56 NATO, 7.62 NATO and 9mm. The 5.56 version is built to be compatible with mil-spec receivers and components, and the carriers are PVD coated in-house, which the maker says gives a hard, smooth, wear and corrosion resistant surface. Finishes include black DLC and gold TiN, and there is a left-handed 5.56 DuraBolt to go with the Lefty receivers.
Barrels, muzzle devices and small parts
F-1 offers 16 inch .223 Wylde barrels in 416 stainless steel with a black nitride finish, in several fluting styles. Muzzle devices include the angle-faced and flat-faced compensating brakes for 5.56 and the Dragon Slay brake, which is also made for .308. Safety selector kits, a skeletonized pistol grip with finger grooves and lower parts kits round out the line for anyone finishing a build.
How to choose
- Building from scratch? Start with a matched receiver set. BDR-15-3G for the classic skeletonized look, UDR-15 if you want the newer 3G styling or a left-handed upper, FDR-15 if budget comes first.
- Upgrading a rifle you own? A handguard or a DuraBolt is the simplest place to start, and both work with mil-spec AR-15 components.
- Want a complete rifle? Compare the FDR-15 rifles with the skeletonized BDRx and UDR rifles. The difference is mostly billet machining, weight and finish, not the operating system.
State law may restrict certain features, magazine capacities or configurations. Check the rules where you live before ordering a complete rifle or pistol.
